Manitowoc NEO 140 / 190 undercounter cube ice machines (UD-0140A, UY-0140A, UR-0140A, UD/UY-0190A): quick sheet

Covers: Manitowoc NEO 26 in wide air-cooled undercounter cubers with a built-in 90 lb bin: U-140 (UR regular, UD dice, UY half-dice) and U-190 (UD dice, UY half-dice). Common in bars, offices and high-end residential. Later SKUs (UDF0140A, UYF0140A, UDP0140A with integrated filter) are related; check their own spec sheets.

Single sourceBrands: Manitowoc3 components

Light-commercial self-contained cuber with a forward-sliding bin for access to the refrigeration parts, a removable water trough, distribution tube and damper door for cleaning, and a front panel with Power, Delay, Clean, Full Bin and Service lights. Calls: Clean light / slow production from scale, Service light, bin-full sensing, hot locations (air in right, out left), and water pressure outside its range.

Safety first

Disconnect power before opening panels.
Use only nickel-safe ice machine cleaner as the manual specifies.
Sealed-system work is for an EPA 608 certified technician.

How it works

Batch cuber: water circulates over a refrigerated evaporator, then a harvest cycle releases the cubes into the bin. A bin-full signal stops production.

Delay function pauses the machine for slow periods or closed days; check it on a 'no ice' call.

Air enters on the right and leaves on the left with no side vents, so it can sit between cabinets; Manitowoc recommends about 5 in at top, sides and back but lists no required minimum.

Operating limits: ambient 40-110 °F, water 45-90 °F, water pressure 20-80 psi at the ice-making water inlet.

Connections: 3/8 in FPT ice-making water inlet and 1/2 in FPT bin drain; 115 V models come with a 6 ft cord and NEMA 5-15P plug.

Components & tests

Unlock all 3 components, specs, service mode and teardown

Full library + AI assistant + the OnCall Tech app for iPhone & Android. $34.90, one time.

Get lifetime access

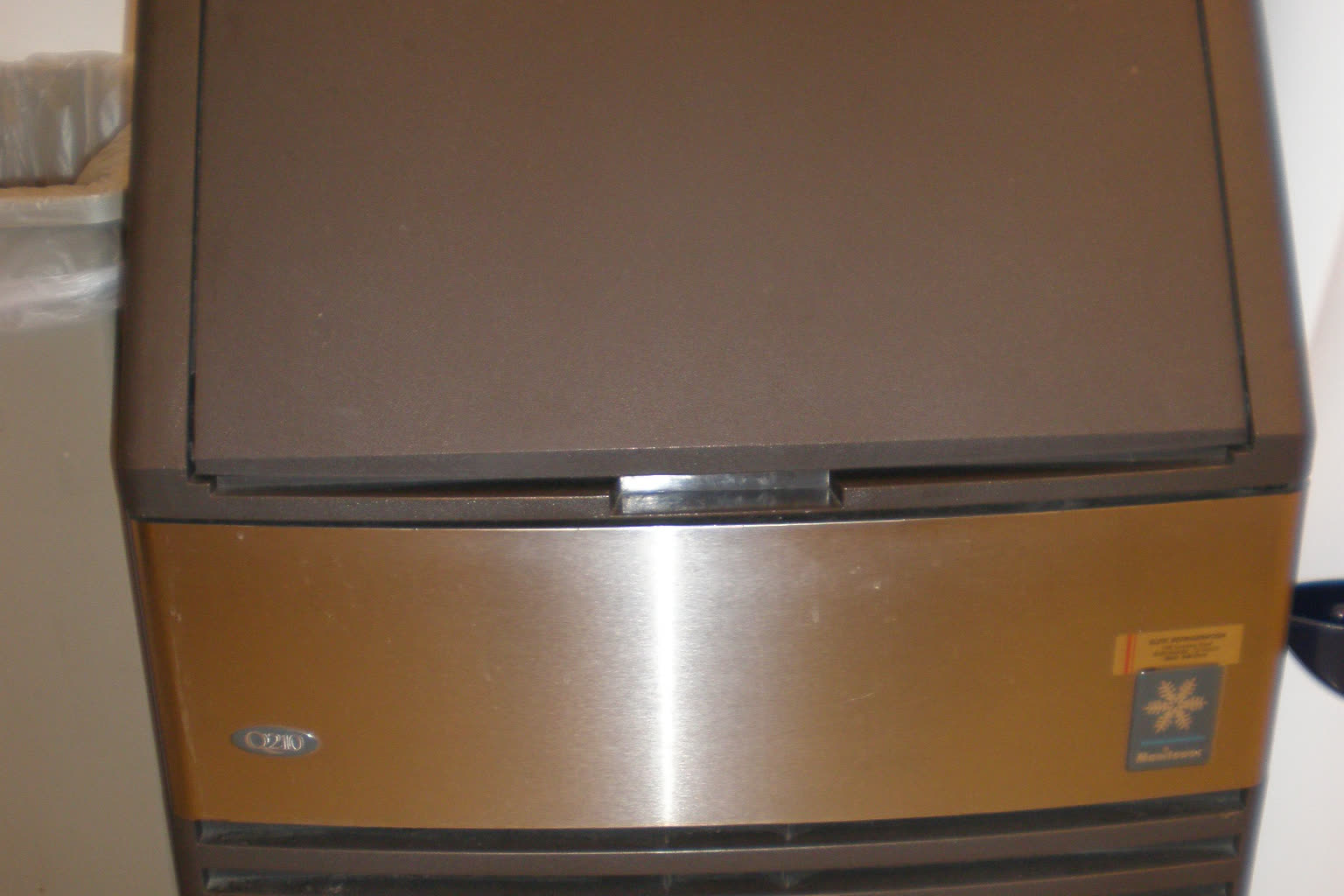

OnCall Tech is a reference tool for trained technicians and can make mistakes. Always disconnect power and confirm with the manufacturer's documentation before you work. © 2026 OnCall Tech. Original content; not a reproduction of any manufacturer document.Generic part photos (not of this brand): Commercial undercounter cube ice machine by BrokenSphere, CC BY-SA 3.0
