Upright frost-free freezer: field service manual

Covers: Residential upright freezers with automatic defrost, electronic or mechanical control, including garage-ready uprights (generic platform; confirm model data).

Cross-checkedBrands: Frigidaire, GE, Whirlpool, Midea, Haier8 components

A single-door upright with an evaporator behind a rear interior panel, an evaporator fan that moves air through the cabinet and an automatic defrost system. Electronic models show a temperature display and alarms (PF, high temp, door ajar). Recognise it by the rear air panel and the absence of frost on shelves.

Safety first

Unplug before removing panels.
Live checks are caution work.
Sealed-system work is blocked: refer to an EPA 608-certified technician.

How it works

A cold control or thermistor/board calls for cooling; the compressor and evaporator fan run (and the condenser fan on fan-cooled condensers).

Periodically the control stops cooling and powers a defrost heater on the evaporator. A defrost thermostat (bimetal) is closed when cold and opens once the coil warms, ending heat.

Melt water runs down a drain to a pan near the compressor, where it evaporates.

Electronic models track cabinet temperature and raise a high-temp alarm, a door alarm (often after about 5 minutes) and a power-failure notice.

Components & tests

Unlock all 8 components, specs, service mode and teardown

Full library + AI assistant for $34.90, one time.

Get lifetime access

Official manufacturer documentation

Always confirm values against the tech sheet for the exact model.

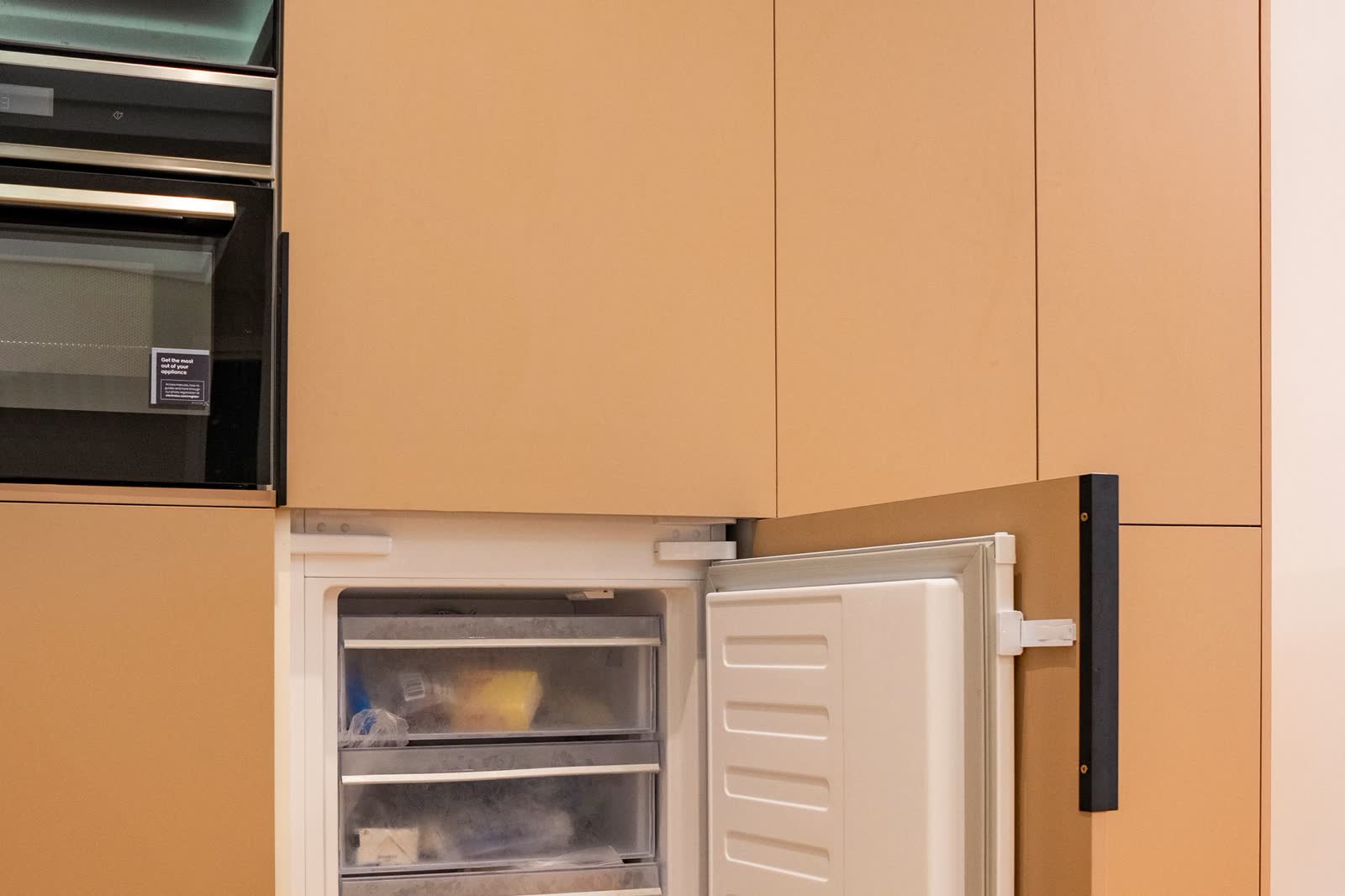

OnCall Tech is a reference tool for trained technicians and can make mistakes. Always disconnect power and confirm with the manufacturer's documentation before you work. © 2026 OnCall Tech. Original content; not a reproduction of any manufacturer document.Generic part photos (not of this brand): Integrated upright freezer with its door open showing drawers by Bilguun Gantumur, Pexels License
