Mitsubishi Electric MXZ-2C20 to MXZ-5C42 multi-zone outdoor units (NA, NAHZ Hyper-Heat): quick sheet

Covers: Mitsubishi Electric MXZ multi-zone outdoor units covered by service manual OBH702: MXZ-2C20NA2/3/4, MXZ-3C24NA(2/3/4), MXZ-3C30NA(2/3/4), MXZ-4C36NA(2/3/4), MXZ-5C42NA(2/3/4) and the Hyper-Heat MXZ-2C20NAHZ, MXZ-3C24NAHZ, MXZ-3C30NAHZ families. The first digit after MXZ- is the number of indoor ports; the two digits after C are the nominal capacity in kBtu/h. They serve two to five indoor units (wall, floor, ceiling cassette or ducted).

Single sourceBrands: Mitsubishi Electric5 components

The outdoor control board has three LEDs: LED1 (red), LED2 (yellow) and LED3 (green). LED1 and LED2 blink counts identify the fault; LED3 patterns show the status of each indoor unit (A-E) and the result of the automatic piping/wiring line-correcting function. Indoor units also blink their operation lamps when the outdoor unit is abnormal.

Safety first

Power board capacitors stay charged after power off.
No refrigerant charge or LEV body work: refer to an EPA 608 certified technician.

How it works

When the indoor OPERATION INDICATOR blinks at 0.5 s intervals with a beep and the outdoor recall shows outdoor, go to the outdoor LEDs.

Auto line correcting: a switch on the outdoor board starts a routine that detects crossed piping/wiring between ports and corrects the assignment; the LEDs show the result. Hold the switch more than 5 seconds to cancel; previous records are erased when the outdoor control board is replaced.

Discharge temperature protection limits differ by model (for example 222.8 F on MXZ-3C24/3C30/4C36NA versions and 240.8 F on NAHZ and 5C42 versions).

Components & tests

Unlock all 5 components, specs, service mode and teardown

Full library + AI assistant + the OnCall Tech app for iPhone & Android. $34.90, one time.

Get lifetime access

Official manufacturer documentation

Always confirm values against the tech sheet for the exact model.

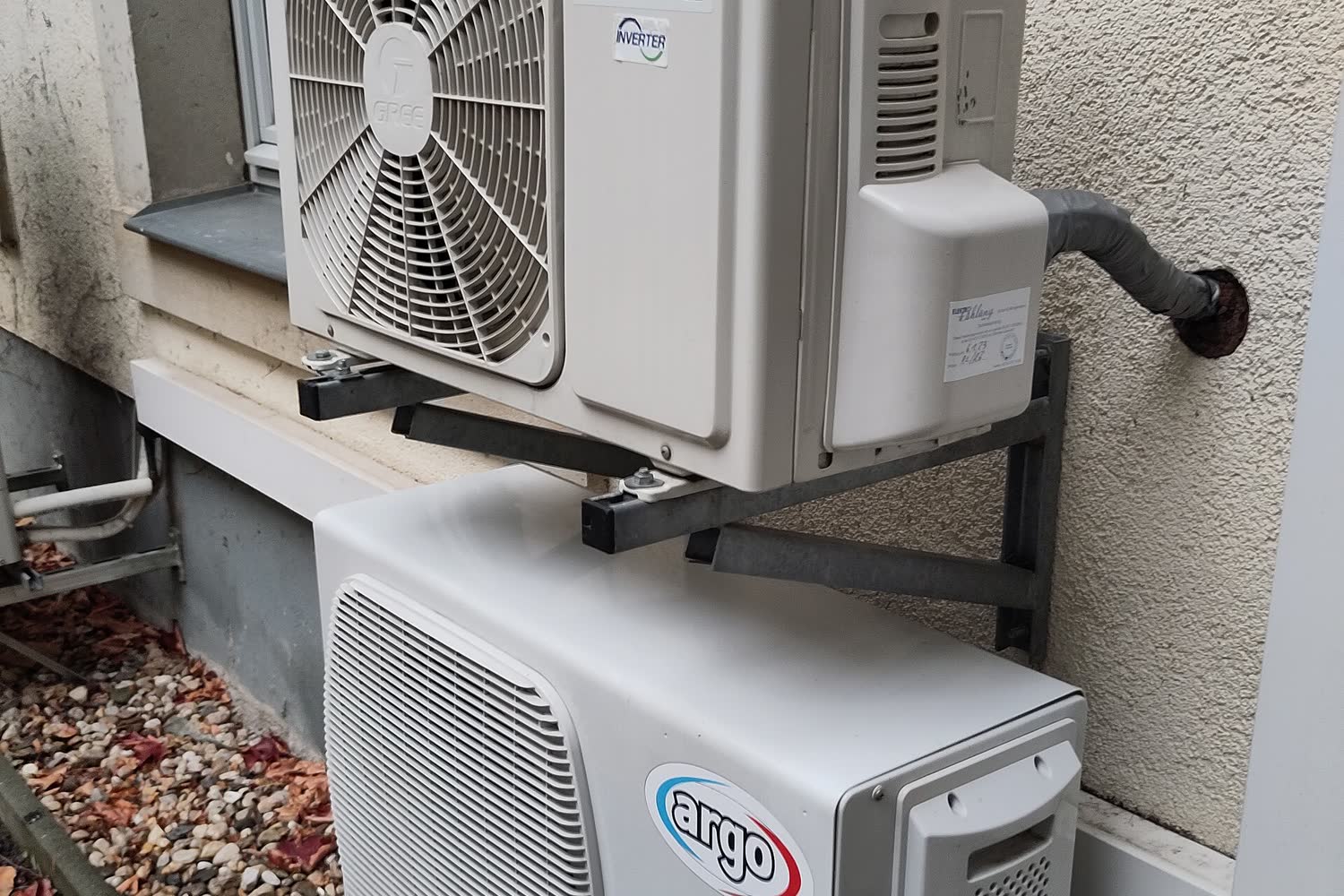

OnCall Tech is a reference tool for trained technicians and can make mistakes. Always disconnect power and confirm with the manufacturer's documentation before you work. © 2026 OnCall Tech. Original content; not a reproduction of any manufacturer document.Generic part photos (not of this brand): Two ductless mini-split outdoor units on a house wall, one on a steel wall bracket, with the insulated line set running into the wall by Pedalito, CC0
